Simultaneously Scrolling SwiftUI ScrollViews Using Introspect
Build intuitive user interfaces
Simultaneous scrolling UIScrollViewusing UIKit can easily be achieved by using the UIScrollViewDelegate . The idea is pretty simple: Observe the contentOffset of a UIScrollView and apply it to another one when the value changes.
However, SwiftUI currently doesn’t provide an API to achieve the very same.
At least iOS 14 there is a new API to do something similar but it’s not enough to replicate the desired use-case:
Enabling simultaneously scrolling ScrollViews in SwiftUI
As there are no APIs to enable this we need to access the underlying UIKit element and set the contentOffset there. This is where SwiftUI-Introspect comes in handy by providing access to the UIKit elements.
After adding Introspect to your project, you can access UIKit elements like this:
With that, we can now implement a component for simultaneously scrolling UIScrollViews.
For simplicity let’s call this component SimultaneoulsyScrollViewHandler . We need to register all the UIScrollViews we want to synchronize in this component to be able to observe and adjust their contentOffsets.
Find a ready to use Swift Package here: SimultaneouslyScrollView
Now we need to get notified about contentOffset changes of the UIScrollView s of our array and apply it to all other registered UIScrollView s.
We can achive this by implementing the UIScrollViewDelegate :
With this new component, we can now go back to our SwiftUI View and using it in introspectScrollView as following:

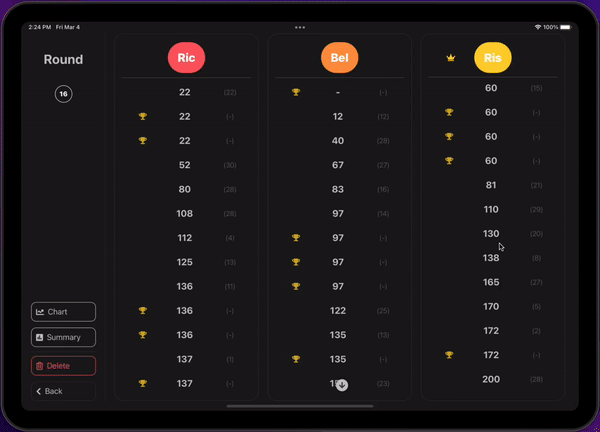

See it in action:
Where to go from here?
I recommend storing the simultaneouslyScrollViewHandler inside some view-model. E.g. an @ObservedObject or a @StateObject.
The above implementation contains a few issues.
One is that the scrollViews Array never get’s cleared and will retain all UIScrollView s from all the redraws of SwiftUI . This can be solved by using some sort of a weak-reference-store.
This and other improvements can be found on a final implementation on my GitHub profile:
