A Visual Guide to Sed

Mastering the text substitution tool

Photo by Alexander Andrews on Unsplash

sed is a CLI tool for text substitution, like “Find and Replace” in GUI editors.

While sd is a better alternative these days, learning sed has some advantages:

• It’s a standard UNIX tool, available everywhere.
• It shares syntax with vim’s command-mode.
• sed is based.

However, mastering sed takes some time — sed is actually a non-interactive text editor with a built-in Turing machine (you can even run Tetris on it).

This guide will show you how it works.

Overview

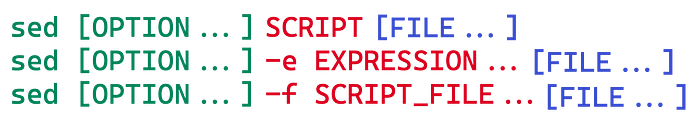

sed invocation syntax.

The invocation is typically sed SCRIPT FILE. For instance, to replace all occurrences of foo with bar in input.txt, you would use:

Sometimes you may want to edit the original file rather than create a new one. In that case, use the -i/--in-place option.

In-place editing.

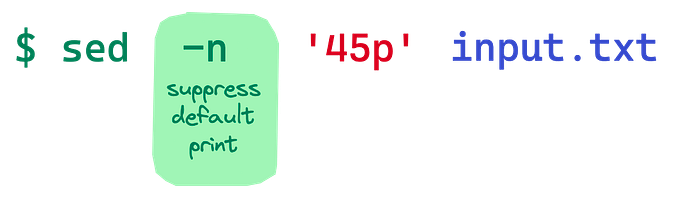

By default, sed prints all processed input, reflecting any modifications made. You can suppress this output with the -n/--quiet/--silent option. In that case, you need to run specific commands to get any output at all, like the p command:

This command prints only line 45.

Remember to quote the script ('') when using sed in a shell.

Command Structure

At its core, a sed script consists of one or more commands. These commands follow the syntax [addr]x[options], where:

• x is a single-letter command,
• [addr] is an optional line address that dictates when the command x will run (there can be empty spaces after the address), and
• [options] holds additional information for some commands.

Yes, all commands are single letters in sed. Sorry.

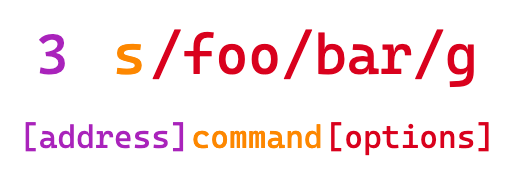

'3 s/foo/bar/g' will search for the word foo on line 3 and replace it with bar. Not too difficult, right?

An address can also be a range: A pair of two addresses separated by a comma. In that case, the command will execute for every line within the range. The following example deletes lines 30 to 35 from a file:

sed ‘30,35d’ input.txt

You can even use a regular expression address to create interesting commands like this one, which prints all input until a line starting with foo is found:

sed ‘/^foo/q’ input.txt

When dealing with multiple sed commands, they can be separated by either semicolons (;) or newline characters:

sed ‘/^foo/d ; s/hello/world/g’ input.txt

How sed works

Let’s take a closer look at sed’s internals.

Sed’s execution model in pseudo-code

Sed operates using two data buffers, which you can think of as internal
variables: the “pattern space” and the “hold space”. These two buffers play a prominent role in sed’s execution, which occurs in cycles:

• First, sed reads one line from the input stream into the “pattern space.”
• Then the commands are executed, one after the other. As we’ve seen, each command can have an address associated with it: Addresses are a kind of condition code — The command is executed only if the address matches the “pattern space.”
• When the end of the script is reached, unless the -n option is in use, the contents of the “pattern space” are printed to the output stream.
• Then the next cycle starts.

Unlike the “pattern space”, the “hold space” keeps its data between cycles. The “hold space” remains usually empty and unused for the entire execution, unless special commands (like h, H, g, G) are used to move data between the buffers). It’s not actually empty — It’s initialized on the first cycle with a single newline (\n) character.

Commands Overview

Here’s a list of every sed command, showing what happens when they run.

You’ll notice that some commands print to the output stream, some commands modify the “pattern space”, and a few commands interact with the “hold space.”

Also, some commands jump somewhere else in the execution cycle after running. Most notably the “goto-like” commands: b, t and T.

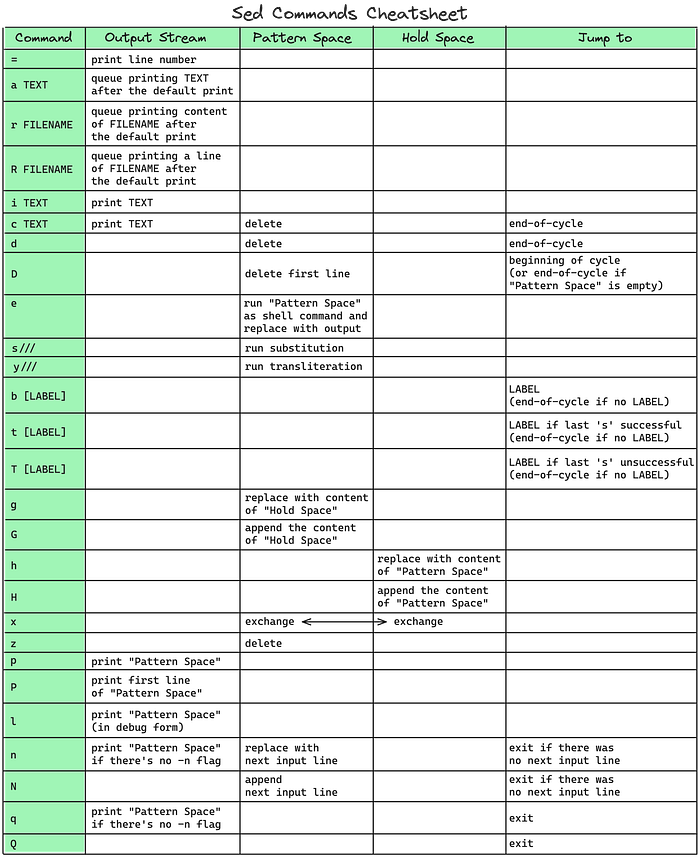

Sed commands cheatsheet (text source) — Not pictured: “w FILENAME”, which writes the contents of the “Pattern Space” to FILENAME.

To use a “goto-like” label, you first need to define it with the : LABEL command. Then, jumping to LABEL will take you to that place in the execution.

The brackets {} are technically commands too. You can use them to group a set of commands so that they execute after a single address.

Broadly speaking, the uppercase commands are a way to do multi-line processing, and the “goto-like” commands are a way to compensate for the lack of if/then and loop constructs in sed. There’s sadly no way to add or subtract numbers.

Gigachad-tip: If you need multi-line, branching, or arithmetic, you are probably better off with tools like awk, Perl, or Python.

Example: Getting book authors

Let’s look at an advanced example.

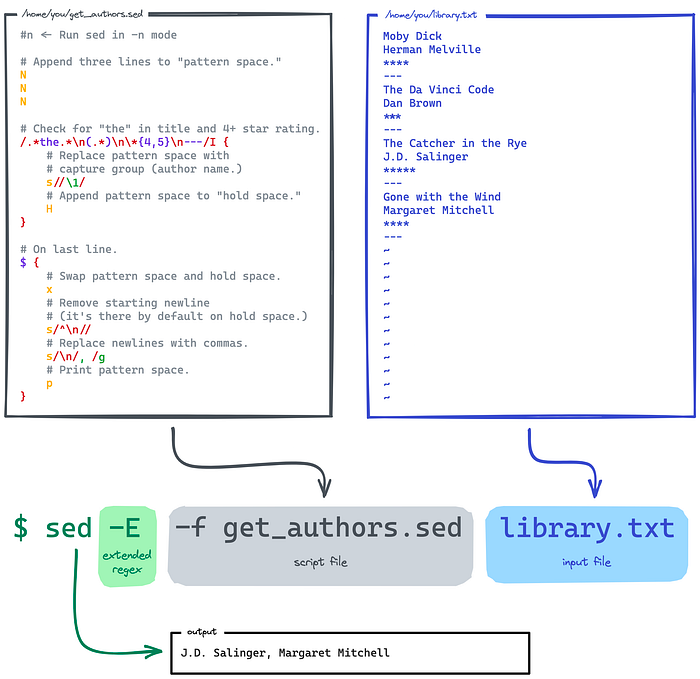

This sed script operates on a list of books in the library.txt format. It finds authors of books with the word “the” in the title and a high star rating.

Source for get_authors.sed and library.txt

Let’s follow its execution.

In the first cycle, none of the addresses match:

Same for the second cycle:

On the third cycle, the first address matches. So we execute some commands and store information in the “hold space:”

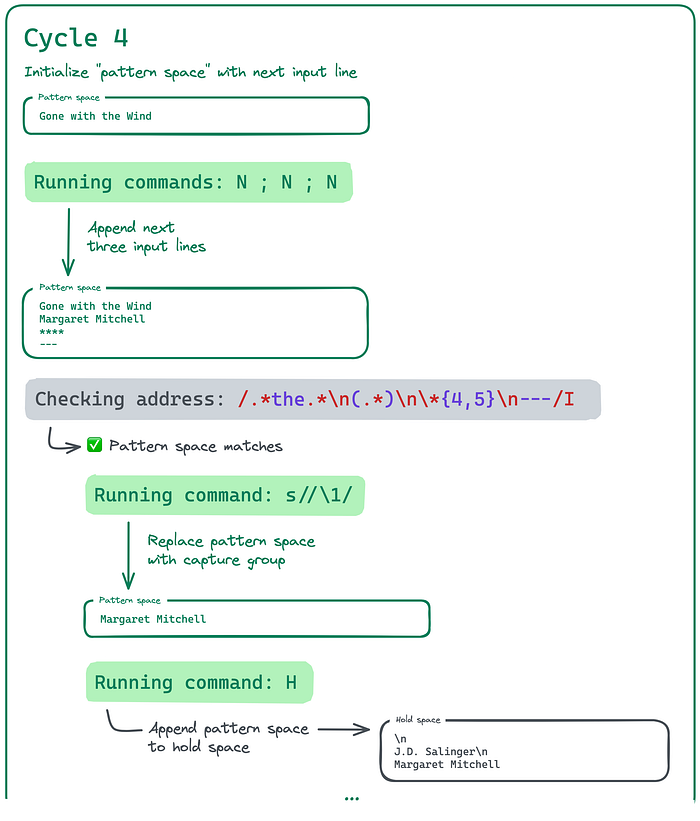

On the fourth cycle, the first address matches, so we append more information to the “hold space:”

Also, the “last line” address matches, so we run commands to clean and print the “hold space:”

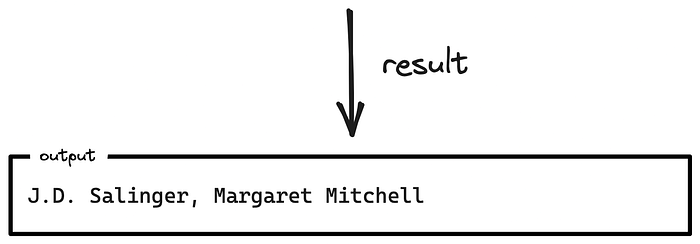

Here’s the output of the entire script:

Gigachad-tip: When writing scripts like this, you can use sed’s --debug flag, which gives you a similar representation of sed’s internal state at every step.

Closing thoughts

Programming in sed feels like operating one level of abstraction too deep. I guess this is how programmers used to think back in the 60s, when they were closer to the metal.

And yet, sed is fun. It’s plain and simple and doesn’t clutter your screen with useless identifiers like if, for, while, or int.

If you have a good model of it, you can usually come up with a short and efficient solution from most problems. Although the solutions you get with Python, Perl and awk can be more intuitive and maintainable.

A sed script running on the desed visual debugger, showing the internal state at every line.

Some additional resources are:

• sedsed — A code formatter for sed scripts.
• desed — An amazing visual debugger for sed.
• The sed guides by grymoire and learnbyexample.
